Minimalist drain

Simple yet elegant, the minimalist drain option offers a sleek and functional element to your shower interior.  Easy to install, the stainless-steel grate and gutter rough-in can be adjusted perfectly to the height to your tile work.

FEATURES

  • Allows a direct slope to the drip point
  • Installation in the center or on the sides of the base
  • Minimalist design
  • Strainer and hook included
  • Pre-installed protective membrane
  • Adjustability of the height of the grate according to the ceramic
  • Anchoring of the gutter rough-in on adjustable legs
  • Stainless steel 304

Visit INNOVATIONS section

2 easy steps :

1) Select your gutter rough-in size
2) Select the proper connection

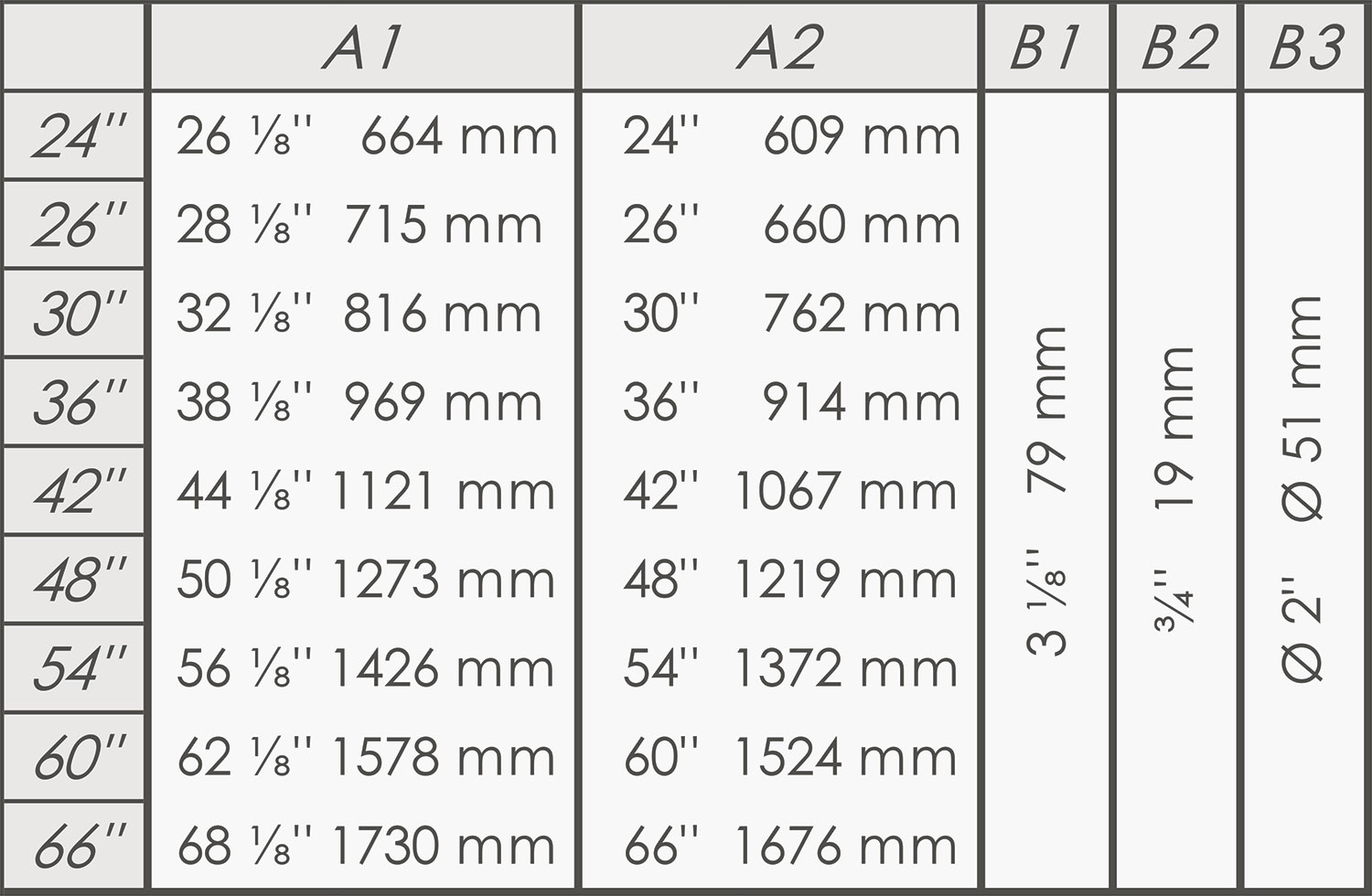

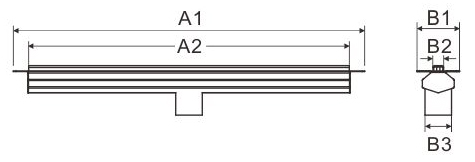

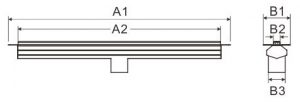

TECHNICAL DRAWING




GRATE SELECTION


GUTTER ROUGH IN


INSTALLATION DIAGRAM


ABS membrane coupling

** Note that there must always be a membrane under the ceramic. **
Choose the ABS drain coupling when there is no access under the floor and there is an additional membrane under the mortar.

  1. Subfloor
  2. Subfloor membrane
  3. Waste pipe
  4. ABS membrane coupling
  5. Gutter rough-in
  6. Ajustable grate support
  7. Shower drain grate
  8. Levelling feet
  9. Strainer
  10. Gypsum
  11. Mortar bed
  12. Textile membrane
  13. Cement glue
  14. Grout
  15. Ceramic tiles

Select a number on image below

[

Numéro 1

Subfloor

[

Numéro 2

Subfloor membrane

[

Numéro 3

Waste pipe

[

Numéro 4

ABS membrane coupling

[

Numéro 5

Gutter rough-in

[

Numéro 6

Ajustable grate support

[

Numéro 7

Shower drain grate

[

Numéro 8

Levelling feet

[

Numéro 9

Strainer

[

Numéro 10

Gypsum

[

Numéro 11

Mortar bed

[

Numéro 12

Textile membrane

[

Numéro 13

Cement glue

[

Numéro 14

Grout

[

Numéro 15

Ceramic tiles


Union fitting

** Note that there must always be a membrane under the ceramic. **
Choose the union fitting when there is an access under the floor but no additional membrane.

  1. Subfloor
  2. Waste pipe
  3. Union fitting
  4. Gutter rough-in
  5. Ajustable grate support
  6. Shower drain grate
  7. Levelling feet
  8. Strainer
  9. Mortar bed
  10. Textile membrane
  11. Protective drain membrane
  12. Cement glue
  13. Grout
  14. Ceramic tiles

Select a number on image below

[

Numéro 1

Subfloor

[

Numéro 2

Waste pipe

[

Numéro 3

Union fitting

[

Numéro 4

Gutter rough-in

[

Numéro 5

Ajustable grate support

[

Numéro 6

Shower drain grate

[

Numéro 7

Levelling feet

[

Numéro 8

Strainer

[

Numéro 9

Mortar bed

[

Numéro 10

Textile membrane

[

Numéro 11

Protective drain membrane

[

Numéro 12

Cement glue

[

Numéro 13

Grout

[

Numéro 14

Ceramic tiles

OPTIONS




ACCESSORIES INCLUDED
