Square drain

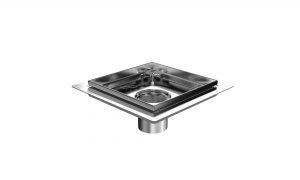

Back to basics with our square drains! They provide an elegant option for your central drain and are offered 4″, 6″ and 8″ for your convenience. Choose from one of 4 different grate styles to add a modern finishing touch to your shower floor.

FEATURES

Allows a direct slope to the drip point
Installation in the center or on the sides of the base
4 choices of grates
Strainer and hook included
Pre-installed protective membrane
Adjustability of the height of the grate according to the ceramic
Stainless steel 304

Visit INNOVATIONS section

3 easy steps :

1) Select your gutter rough-in size
2) Select your decorative grate style and size
3) Select the proper connection

TECHNICAL DRAWING

: Grille E

: Caniveau F

GRATE SELECTION

GUTTER ROUGH IN

INSTALLATION DIAGRAM

ABS membrane coupling

** Note that there must always be a membrane under the ceramic. **
Choose the ABS drain coupling when there is no access under the floor and there is an additional membrane under the mortar.

Subfloor
Subfloor membrane
Waste pipe
ABS membrane coupling
Gutter rough-in
Ajustable grate support
Shower drain grate
Strainer
Mortar bed
Textile membrane
Protective drain membrane
Cement glue
Grout
Ceramic tiles

Select a number on image below

[

Union fitting

** Note that there must always be a membrane under the ceramic. **
Choose the union fitting when there is an access under the floor but no additional membrane.
